CB-39 Series Tilt Switch

  • All probe models are air tight, dust proof and waterproof
  • Compact probess hould be used for applications where the area is limited and standard
  • Heavy probess hould be used for a brasion resistant applications.
  • Simple Installation and setup
  • Lower costs
Get offer Share
CB-39 Series Tilt Switch

Tilt Switch Probes are electro-mechanical tilt sensors designed for sensing bulk materials presence or absence at the location of installation. Typical applications include high and low level detection and detection of plugged conditions in chutes. Also used for detecting the conditions of bulk material on conveyor belts.

KBT Tilt Switch are made from two materials for different applications: The SS series with stainless steel body and the CB series which are made metal cast to meet heavy working conditions. Depending on the applications, can be supplied with a dedicated control unit or can be directly integrated in existing control system.

KBT Tilt Switches have two different output options.

- Standard NC tilt switches which can be used as standalone or be paired with our control units,
can detect tilted and vertical positions.
- Electronic output switches can only be used by pairing with a control unit and have the ability to detect status for tilted, vertical, fault and short circuit status. With the added advantage of having a fault relay, you can detect problems earlier with electronic models and prevent loss and downtime.

Ask us about the compability of KBT Tilt Switches with your existing control units.

Features

Robust and resistant
Simple Installation
Wide range of customization options
Mercury and non-mercury options
NC or electronic output options
Control units to monitor your applications
Delay options to prevent false alarms
IP68 protection class
Probe extensions are available for application needs
Cable protection options reduce the risk of a failure

Probe Options

Hazardous Location Option
X: ATEX Zone 20/21 certified for hazardous locations. (Suffix to model name, eg. CB-39NMX)

Other Options

HT: High Temperature, -40 °C - 180 °C
C1: Cable Protection, braided steel conduit.
C2: Cable Protection, interlocked hose conduit.

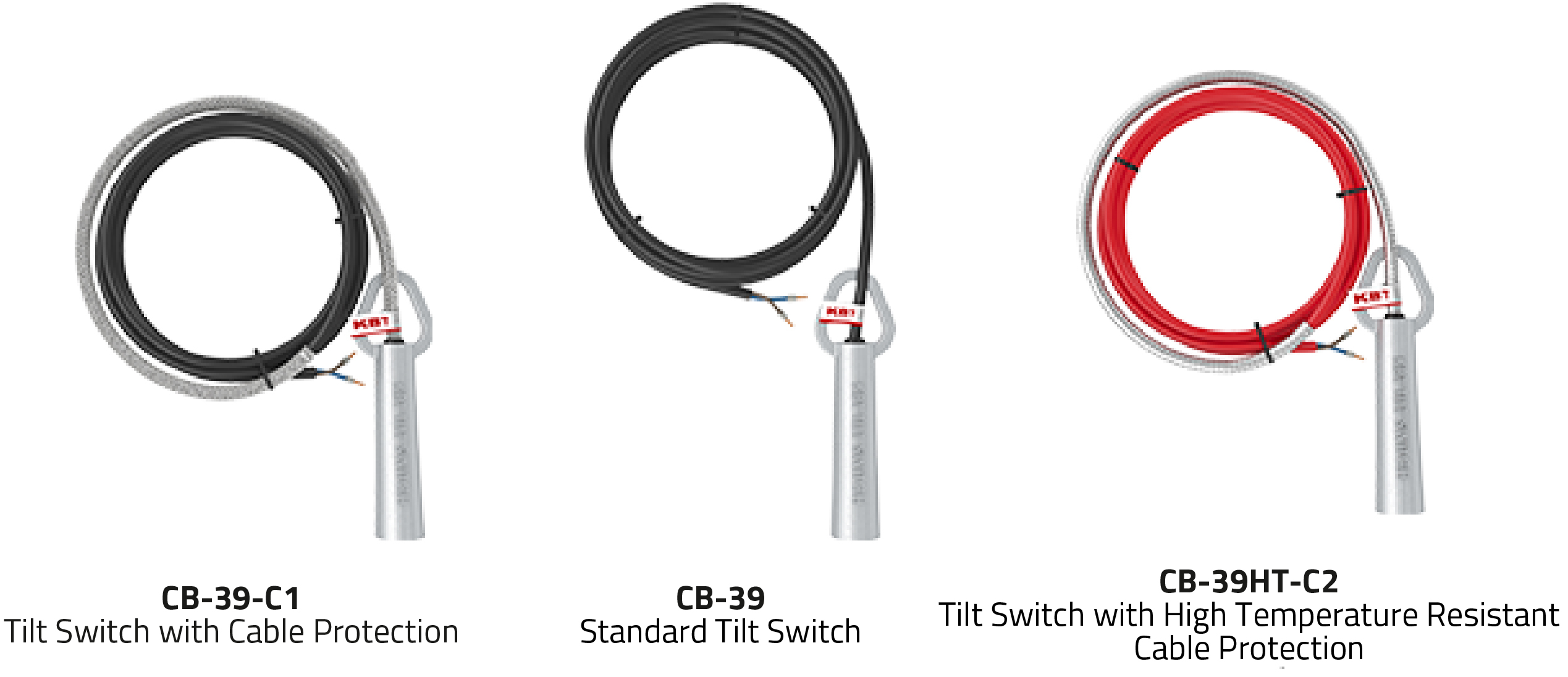

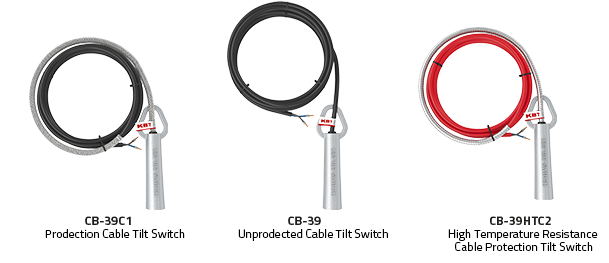

CB-39 Series - Heavy Duty Cast Iron Probe

Model Tilt Angle Mercury Non-Mercury Output
CB-39 35° x   NC when vertical. Opens at angle.
CB-39A 20° x   NC when vertical. Opens at angle.
CB-39NM 20°   x NC when vertical. Opens at angle.
CB-39E 35° x   Electronic. Must be used with Control Units.
CB-39AE 20° x   Electronic. Must be used with Control Units.
CB-39NME 20°   x Electronic. Must be used with Control Units.

Technical Specifications

Enclosure CB-39 Series: Nickel plated ductile iron casting
Mounting Hanger and two S-hooks (included with probe)
Temperature Rating -40°C, +80°C
Protection Class IP67
Certifications CE, EAC, optional cULus
Hazardous Area Optional ATEX Zone 20/21
Contact Values CB-39: 120 VAC - 12.5 A
CB-39A: 120 VAC - 1.5 A
CB-39NM: 60 VDC - 0.25 A

Probe Extension Options

BF: Ball Float. 4" by standard, custom dimensions are available. Useful with low-density material.
EP: Extension Plate. Useful for flow detection applications.
WP: Wear Plate. Used to lengthen the probe or to protect the probe body.
CP: Cross Paddle. Used for flowing material.

Tilt Switch Control Units

Model Type Enclosure Alarm Contact Fault Contact
KT-30F Field mount Metal 1 SPDT 1 NO, short circuit indicator. Only when use with electronic output models.
KT-30FS Field mount Stainless Steel 1 SPDT 1 NO, short circuit indicator. Only when use with electronic output models.
KT-32F Field mount Thermoplastic 1 SPDT 1 NO, short circuit indicator. Only when use with electronic output models.
KT-35DIN DIN mount Thermoplastic 1 NO 1 NO, short circuit indicator. Only when use with electronic output models.

Technical Specifications

Enclosure KT-30F Metal
KT-30FS Stainless Steel
KT-32F Thermoplastic
KT-35DIN Thermoplastic
Mounting KT-30F Screwed into its place via brackets supplied.
KT-30FS
KT-32F
KT-35DIN DIN Mount
Temperature Rating All models -40°C, +80°C
Input All models 110/220 VAC, 50/60 Hz
Alarm Contact KT-30F 1 SPDT - 110/220 VAC 6 A - 30 VDC 6 A
KT-30FS
KT-32F
KT-35DIN 1 NO - 110/220 VAC 2 A - 24 VDC 3 A
Fault Contact KT-30F 1 SPDT - 110/220 VAC 2 A - 24 VDC 2 A
KT-30FS
KT-32F
KT-35DIN 1 NO - 110/220 VAC 2 A - 24 VDC 2 A
Delay All models 1, 2, 4 or 6 seconds.
Protection Class KT-30F IP66
KT-30FS
KT-32F
KT-35DIN IP20
Certifications All models CE
